Chemical Earthing Electrode Manufacturers in Pune, Suppliers and Dealers in Pune
Planet Power Solutions is a leading Chemical Earthing Electrode Manufacturers in Pune, suppliers and dealers in Pune. Our products are developed perfectly to meet customer specifications.Wehave a guarantee of on-time delivery. As well as we have a good Quality build-up. These products are highly demanded and acknowledged. Furthermore, these are developed at our end using quality-approved inputs, which are procured from specialized vendors of the industry after stern quality inspections.
What is a Chemical Earthing Electrode?
Chemical Charge pipe electrode is also known as Chemical Earthing Electrode. It has the Combination of Two Most important things: chemicals and electrodes. Chemical Earthing Electrode manufacturers are Creating Effective and safe systems which are electrically grounded. A Chemical Earthing Electrode Suppliers in Pune is a modern, safe, and reliable grounding solution that protects equipment and human life by effectively dissipating electrical faults and lightning currents into the earth.

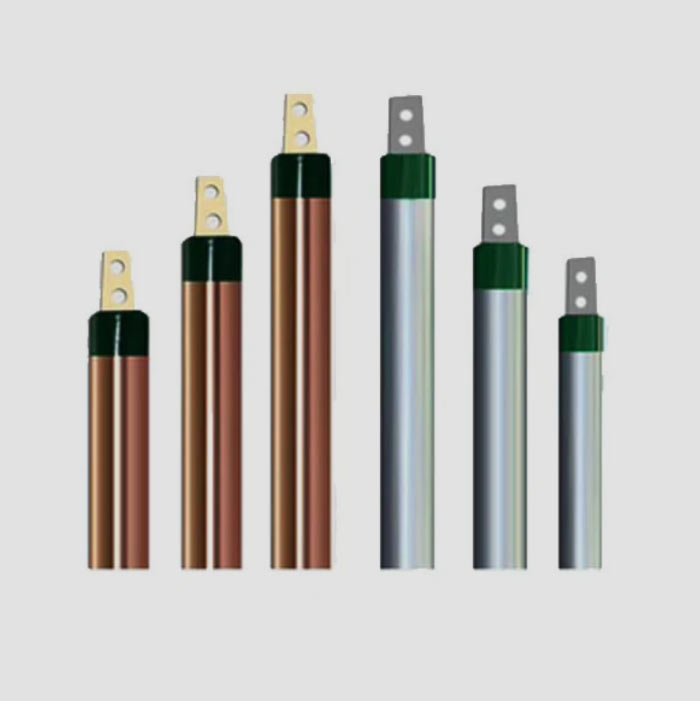

Types of Chemical Earthing Electrode:
As a Chemical Earthing Electrode Manufacturers in Pune, we provide these types of Chemical Earthing Electrode:
- Pure Copper Electrodes: Chemical Earthing Electrode Suppliers in Pune. These electrodes are made of high-conductivity pure copper and are therefore very good in industry, as we have good conductivity and resistance to corrosion.
- Copper Bonded Electrodes: These types of electrodes are made of steel with a molecularly bonded pure copper outer layer. We are cost-effective, durable and resist corrosion because we offer the strength of steel and conductivity of copper.
- Galvanized Iron (GI) Electrodes: Made out of GI rods, this type is more cost-effective, can be used in a residential setting, and can be used in smaller applications, but is less conductive and less corrosion-resistant than copper alternatives.
Technical Specifications of Chemical Earthing Electrode:
As a Chemical Earthing Electrode dealers in Pune, we have added below a table of technical specifications for this.
| Parameter | Specification |
|---|---|
| Standard Compliance | IS 3043, Code of Practice for Earthing; IS 1239 Part 1, IEC 62561-7, where applicable |
| Type / Design | Pipe-in-Pipe, Maintenance-Free Chemical Earthing Electrode |
| Outer Pipe | Low Carbon Steel as per IS 1239, Medium Class; OD, 50 mm ±5%, Wall Thickness ≥ 3.0 mm; Length: 2000 mm, 3000 mm, Hot-dip Galvanized ≥ 80 µm |
| Inner Conductor | GI Pipe 25–32 mm OD OR GI Strip 25 × 6 mm or 32 × 6 mm; Hot-dip Galvanized ≥ 80 µm |
| Terminal Arrangement | Terminal Plate 50 × 6 mm, GI; 2 Nos. Holes Ø 12 mm; Fully welded & galvanized |
| Backfill Compound (BFC) | Hygroscopic, conductive crystalline compound; Non-corrosive & non-leaching; Resistivity ≤ 0.12 Ω-m; pH, 6.5–8.5, Loss on ignition < 20% |
| Earth Resistance | ≤ 1 Ω Substation ,Critical load; ≤ 5 Ω General Installations |
| Short Circuit Withstand | 40 kA for 1 second RMS |
| Service Life | ≥ 15 years in normal soil conditions |
| Tensile Strength (Steel Core) | ≥ 600 Mpa for copper-bonded rods |
| Installation Depth | Minimum burial depth: ≥ 2.5 m from FGL |
| Inspection Chamber | Precast RCC, FRP with cover, size 300 × 300 × 300 mm |
| Marking | Manufacturer’s Name, Size, Length, Batch No., Year of Manufacture, permanent stamping |
| Certifications | ISO 9001 & ISO 14001 Certified Facility; ISI Mark where applicable; Type Tested at CPRI, ERDA, NABL Accredited |
Benefits of Chemical Earthing Electrode:
We are Chemical Earthing Electrode Dealers in Pune, and our products provide the following benefits:
- Low and stable earth resistance- Earthing Chemical Powder assists in ensuring that soil resistivity is kept constantly low near the electrode, thereby maintaining stable and effective grounding. This offers confidence in electrical safety, reduces the variation of voltages and improves the earthing system performance as time passes.
- Long service life- Earthing Chemical Powder provides the earthing system with stability and durability because it keeps the soil resistivity low and eliminates electrode corrosion. This means that its performance is long-term, therefore it does not require a lot of maintenance or replacement of the Earthing Electrode.
- Reliable safety for equipment- Provides a safety path for any electrical issues, like fault currents. As well as electrical shocks and personal problems.
- Consistent performance- It consists of performing daily with the help of high voltage electrodes, even changing with the climate, it does not lose consistency.
- Cost-effective overtime- Earthing Chemical Powder offers a long-life and maintenance-free earthing solution which minimises replacements every time, or extra materials. This makes the earthing system cost-effective through its service life, making operational and maintenance costs minimal.
Applications of Chemical Earthing Electrode:
As a Chemical Earthing Electrode Dealers in Pune, and our products are widely used in the following applications:
- Industrial Plants & Manufacturing Units- In this unit, we use raw materials and convert them into usable things using machines and other devices. There are different types of machines, such as Turbines, boilers.
- Lightning Protection Systems- It is a very safe system that is designed to protect people, buildings from the effects of Light. It is used in various fields, like hospitals, IT parks, for protection.
- Telecommunication Towers & IT Infrastructure- This is a combination of various things in Telecommunication it uses dishes, antennas and other devices. As well as in IT infrastructure includes clouds, networking, and hardware.
- Hospitals & Educational Institutions- Both of the fields save lives with support from doctors and teachers. Hospital institutes provide medical treatment with care, and educational institutes provide skills, knowledge.
- Railways, Airports & Infrastructure Projects- Railways are the biggest public transport for travelling from one place to another as well and airports have the largest travellers, and both are integrated into infrastructure projects.
Planet Power Solutions is a prominent Chemical Earthing Electrode Manufacturers in Pune, Suppliers and Dealers in Pune. Chemical earthing electrodes have dependable solutions of grounding solutions. This product is very usable and has low resistance and Stable Quality. Ideal for industrial plants, telecommunication towers, hospitals, educational institutions, and IT infrastructure, chemical earthing electrodes are an essential component of modern electrical safety systems, delivering performance, durability, and peace of mind.
Get in touch with us for further details.
