Maintenance Free Earthing Electrode Manufacturers in Pune, Suppliers and Dealers in Pune

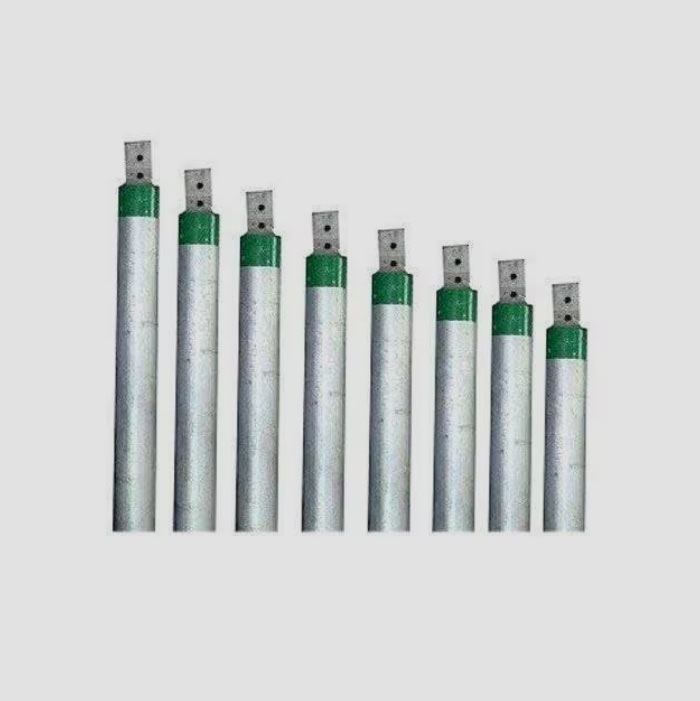

Planet Power Solutions is a well-known Maintenance Free Earthing Electrode Manufacturers in Pune, Suppliers and dealers in Pune. Our Maintenance Free Earthing Electrode is an important part of electrical systems. We give a safe and dependable path for fault currents to reach the ground, which protects equipment and people. Our Maintenance Free Earthing Electrodes are made from high-quality copper-bonded steel or galvanized steel. We are designed to last under different soil and environmental conditions.
What Is a Maintenance Free Earthing Electrode?
Maintenance Free Earthing Electrode offer some of the best earthing solutions as compared to other earthing solutions. The earthing solutions are constructed out of high-quality materials and are filled with non-corrosive and high-conducting properties that offer constant operations over an extended service life. Maintenance-free implies that once fitted, the electrode will not require water or salt added every now and then, as is the case in conventional earthing systems.
Types of Maintenance Free Earthing Electrode:
As a Maintenance Free Earthing Electrode Suppliers in Pune we provide these types are:
- Pure Copper Earth Electrodes: This kind of electrode is composed entirely of pure copper, which offers a very considerable conductivity and resistance to corrosion. These electrodes are designed with 100 Percent electrolytic grade copper, which provides maximum current-carrying capacity and reliable earthing in critical applications.
- Copper Bonded Electrodes: These electrodes are made of a core of steel that is heavily coated with pure copper bonded to the steel, which provides good conductivity with minimal cost compared to pure copper.
- Galvanized Iron (GI) Electrodes: These are made of galvanized steel and, therefore, extremely strong and cost-effective. We can be designed with features like moisture-retaining materials to enhance their long-life performance and to require less maintenance.
- Chemical Earthing Electrodes: These are made up of copper or copper-bonded steel filled with a special chemical compound that assists in keeping the electrode maintained at a level of resistance as well as always moist, which means that these electrodes do not require watering very often.
- Gel Earthing Electrodes: These are analogous to chemical electrodes, except that we use a proprietary gel compound to retain water and improve conductivity. These electrodes are made by a mixture of metallic pipes (GI or Copper) and a special backfill compound impregnated with conductive gel to achieve excellent conductivity.
Technical Specifications of Maintenance Free Earthing Electrode:
As a Maintenance Free Earthing Electrode dealers in Pune, we have added below a table of technical specifications for this.
| Sr. No. | Parameter | Specification | Description / Requirement |
|---|---|---|---|
| 1 | Type of Electrode | Pipe-in-Pipe / Copper Bonded / Copper Clad / Hot-Dip Galvanized (GI) | Electrode shall be of robust design ensuring uniform current dissipation and long service life. |
| 2 | Material of Construction | Low Carbon Steel / MS, Copper Bonded or Hot-Dip Galvanized | The electrode shall have a low-carbon steel core bonded with high-conductivity copper (min. 250 µm thickness) or a hot-dip galvanized coating for GI types. |
| 3 | Electrode Length | 2000 mm to 3000 mm (±5%) | Length shall be selected based on soil resistivity to achieve the desired earth resistance. |
| 4 | Outer Diameter | 40 mm to 110 mm (for GI Pipe), 14 mm to 25 mm (for Copper Bonded Rods) | Wall thickness shall be adequate to provide mechanical strength and withstand installation stress. |
| 5 | Copper Bonding Thickness | Minimum 250 Microns | Copper coating shall be molecularly bonded to steel to ensure corrosion resistance and electrical conductivity. |
| 6 | Galvanization Thickness (for GI) | Minimum 80–100 Microns | Hot-dip galvanized coating shall be uniform and tested for adherence. |
| 7 | Terminal Strip / Clamp | 32 × 6 mm, 40 × 6 mm, 50 × 6 mm Copper, GI Strip | Terminals shall have pre-drilled holes 10–12 mm with suitable SS/Copper nuts, bolts and washers. |
| 8 | Backfill Compound (BFC) | Conductive Chemical Compound (Moisture Retaining) | Compound shall be eco-friendly, pH neutral, non-corrosive, and have resistivity ≤ 0.1–0.24 Ω-m. Shall comply with IEC 62561-7. |
| 9 | Fault Current Withstand Capacity | 20 kA to 60 kA Peak | Electrode shall withstand the specified fault current without damage or degradation. |
| 10 | Earth Resistance Value | ≤ 1 Ω Critical, ≤ 5 Ω General | Final resistance value shall depend on site soil conditions. |
Benefits of Maintenance Free Earthing:
We are Maintenance Free Earthing Electrode dealers in Pune, our products provide the following benefits:
- Long Service Life: Maintenance Free Chemical Earthing Electrode Dealers in Pune. It gives high-quality compounds and electrodes. Because of these electrodes, it maintains long life with Good capability.
- Zero Maintenance: Electrodes inside this system do not require anything to maintain Quality it works without the help of anything like salt, charcoal.
- High Fault Current Withstand Capacity: It has the capacity to handle high-quality currents while ensuring the safety precautions for areas like buildings.
- Consistent Performance: Maintenance Free Chemical Earthing Electrode. It never diminishes their performance; it always grows and is invariable in all circumstances. Due to the high level of importance of consistency.
- Fits all Soil Conditions: It favours all types of soil and performs well in all situations, and favourably in sandy and rocky soils.
Applications of Maintenance Free Earthing Electrode:
We are Maintenance Free Chemical Earthing Electrode Dealers in Pune, and applications of these electrode are as follows:
- Renewable Energy Installations- It installs Renewable energy from different sources, like solar power plants, which are one of the main energy sources, as well as wind farms, which are also a source of energy.
- Commercial Buildings & Complexes- Maintenance Free GI Chemical Earthing Electrode uses in high-quality departments like hospitals, Buildings, Multiplexes and require of high power supply to work properly as well as it requires safety from electricity.
- Power Generation & Distribution Systems- Maintenance Earthing Electrode Suppliers in Pune are used at high power areas like power stations because we handle fault currents.
- Telecommunication Towers & Data Centers- Ensures stable ground resistance and shields communication equipment, server racks, and network systems from voltage fluctuations and surges.
- Petrochemical & Hazardous Zones- Provides reliable grounding for plants handling flammable substances, minimizing risks of sparks, static discharge, and fire hazards.
We are prominent Maintenance Free Earthing Electrode Manufacturers in Pune, Suppliers and dealers in Pune. Maintenance Free Earthing Electrode is supportive for all grounding systems because it is reliable and also newly generated in short, it is modern as well as long-lasting. It has high-quality materials like compounds. A compound is a high-class material that is used in earthing systems. Maintenance-free Earthing is an earth-friendly and efficient product compared to the ordinary earthing methods, which provide high-quality performance throughout the service life.
Get in touch with us for further details.
