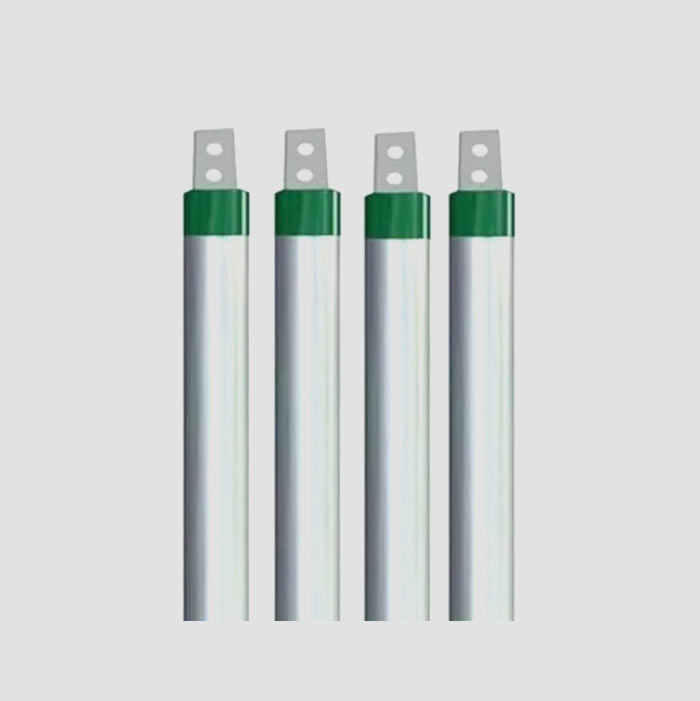

JEF Earthing Electrode Suppliers in Pune and Dealers in Pune
Planet Power Solutions is a leading JEF Earthing Electrode Suppliers in Pune and JEF dealers in Pune. We provide high-quality Earthing Electrodes that ensure safe and effective dissipation of electrical fault currents into the ground. We protect personnel, equipment, and infrastructure from electrical hazards. Our electrodes are made from premium materials like copper-bonded steel, galvanized iron, and stainless steel. We offer good conductivity, resist corrosion, and ensure long-term reliability. We also supply a full range of accessories, including clamps, connectors, bonding kits, and conductors, for secure and easy installation.
What is an Earthing Electrode?
An earth electrode is a conductor that gets buried in the ground to provide a safe and low-resistance route for the fault current to flow in the earth to avoid shock to people and equipment, as well as proper functioning of the system. The primary element of the earthing system is the earth electrode, which must be strong in a mechanical sense and less prone to corrosion. It is also necessary that the earth electrode be corrosion-resistant and less reactive to the conductors that are used to have a longer life and minimal maintenance. JEF Earth Electrodes are custom-made to satisfy this.
Types of Earthing Electrode:
As a JEF Earthing Electrode Suppliers in Pune we provide following types:
- I. Pipe Earthing:- Pipe Earthing is one of the most common but very economical grounding methods in India. In this type of system, the earth electrode is a GI Galvanized Iron or Copper pipeline that is embedded in the ground in a vertical position. The surrounding soil is treated with charcoal and backfill compound BFC so that its conductivity is enhanced, and the earth resistance is reduced.
- II. Plate Earthing:- Plate Earthing is an ancient and well-established form of earthing, where in a particular depth a metallic plate, commonly GI or copper, is driven in the ground vertically. The plate is the primary earthing electrode, and the surrounding soil is impregnated with charcoal and salt or backfill compound BFC to ensure that the conductivity of the soil is increased, and in addition to this, low earthing resistance is obtained.
- III. Rod Earthing:- Rod earthing is a low-cost and low complexity earthing method where the earth electrode is a plunge-driven rod of GI, Copper or Copper-bonded steel. This method provides a less resistant pathway where fault and lightning currents are safely discharged on the ground.
- IV. Strip Earthing:- Strip Earthing is a common and old practice of grounding of a continuous minimum resistance route by means of GI (Galvanized Iron) or Copper strips. In this process, metallic strips are laid horizontally on the ground at a recommended distance, which is typically in a trench, and these strips are interconnected in the electrical installation.
- V. Chemical Earthing:- Chemical Earthing is a high-level grounding system that is maintenance-free and a low-resistance earthing solution that offers stable earthing and long-term earthing. The chemical earthing technique employs electrodes in the presence of conductive backfill compound (BFC) as opposed to traditional earthing techniques that use charcoal and salt.
Technical Specifications of JEF Earthing Electrode:
As a JEF Earthing Electrode dealers in Pune, we have added below a table of technical specifications for this.
| Parameter | Specification |
|---|---|
| Manufacturer | JEF Techno Solutions Pvt Ltd. |
| Product Type | Maintenance-Free Chemical Earthing Electrode |
| Material | Copper Bonded / Galvanized Iron (GI) |
| Electrode Diameter | 40 mm, 50 mm, 60 mm, 76 mm |
| Electrode Length | 1.5 m, 2.0 m, 3.0 m |
| Copper Coating Thickness | 250 – 300 microns (Copper Bonded Electrode) |
| Galvanization Thickness | 70 – 100 microns (GI Electrode) |
| Construction Type | Pipe-in-Pipe Technology (Inner & Outer Electrodes) |
| Backfill Compound | JEF Earth Enhancing Compound (EEC) – Non-corrosive, hygroscopic, eco-friendly |
| Electrical Resistivity (EEC) | < 0.12 Ω•m |
| Earth Resistance | < 1 Ω (subject to soil conditions) |
| Soil Compatibility | pH 3 – 11; suitable for all soil types |
| Tensile Strength (MS Core) | 380 – 480 Mpa |
| Service Life | ≥ 30 years in normal soil conditions |
| Terminal Connection | Heavy-duty terminal clamp / bolted connection |
| Installation Method | Vertical installation with Earth Enhancing Compound |
| Standards / Certification | IS 3043:2018, IEC 62561, CPRI tested |
| Maintenance | Maintenance-free |
Benefits of JEF Earthing Electrodes:
As a JEF Earthing Electrodes Suppliers in Pune, our products provide the following benefits:
- Safety Enhanced: Earth Electrode Improved Safety offers a low resistance ground with fault and lightning currents to reduce the chances of electric shock, equipment and fire hazards.
- Stable & Low Earth Resistance: The values of earth resistance remain consistent during a long duration, thus making sure that there is no loss of protection in all weather and soil types.
- Improved System Performance: Enhances the operation of the protection devices, including circuit breakers, relays and surge arresters, because the fault current impedance is low.
- Corrosion Resistance & Long Life: The Electrodes are made with hot-dip galvanized iron, copper bonded, or pure copper that offers resistance to corrosion and a long life of 15–30 years.
- Maintenance-Free Operations: Electrodes, when electrodes are used with backfill compounds (BFC) we are both moisture-retaining and corrosion-resistant and require little routine maintenance.
Applications of JEF Earthing Electrodes:
We are JEF Earthing Electrodes Dealers in Pune, and the Applications are as follows:
- Facilities of Industry- Industrial Uses Commercial uses to operate heavy equipment, turn on and off boards, and distribute in manufacturing plants, refineries, power plants and chemical industries.
- Electrical Substations- Improves safe dissipation of fault currents of transformers, switchgear, bus bars, as well as protection systems, and a stable working power network.
- Commercial and Residential Buildings– Includes the building constructions, electrical wiring and occupant protection against electric shock and lightning attacks, which is needed in the high-rise buildings and complexes.
- Telecommunication Tower– Protects Telecommunication Tower is used to shield sensitive telecommunication and antenna equipment and repeater stations from lightning and transient surges to enable the delivery of continuous communication services.
- Data Centres and Information Technology Infrastructures- Stabilizes the reference potential of the sensitive electronic equipment, reducing the level of electromagnetic emissions and improving the predictability of operations.
We are an ultimate JEF Earthing Electrode Suppliers in Pune and JEF dealers in Pune. Earthing electrodes achieve electrical safety, safe route for fault currents to Earth, protect people and equipment against electrical hazards and enhance the reliability of the electrical system in general. Effective earthing is a matter of choice in which the right system is chosen depending on certain needs, installed appropriately and even undergoes regular maintenance to ensure the system always protects against threats such as electric shock and lightning strike.
Get in touch with us for further details.
