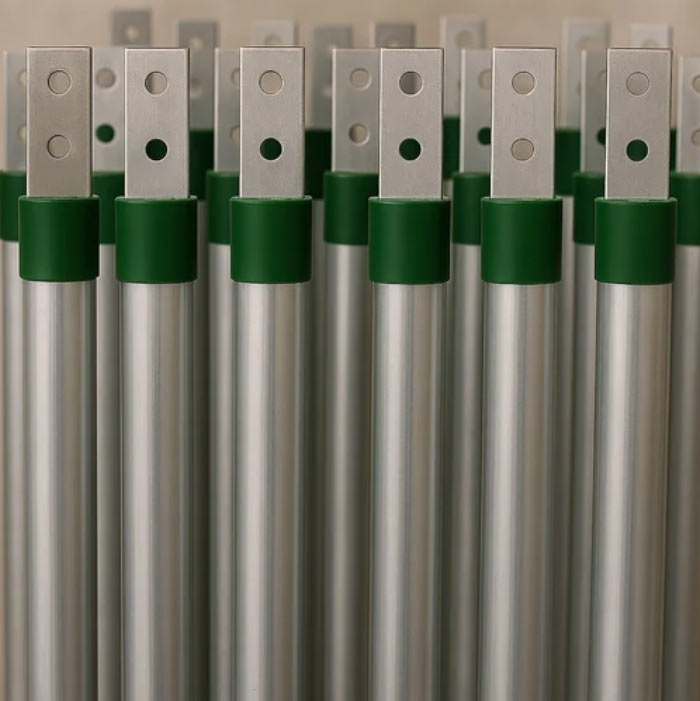

GI Earthing Electrode Manufactures in Pune, Suppliers and Dealers in Pune
Planet Power Solutions is the leading GI Earthing Electrode Manufacturers in Pune, Suppliers and dealers in Pune. Our GI Earthing Electrode is an important part of electrical grounding systems. Weoffer a safe way for electrical fault currents to flow into the ground, protecting both equipment and people from electrical dangers. Our GI Earthing Electrodes are made to keep low resistance, provide reliable grounding, and reduce maintenance needs. Our Products are commonly used in homes, businesses, and industrial settings, including power distribution systems, transformers, electrical panels, and lightning protection systems.
What is a GI Earthing Electrode?
Fault currents in the ground are carried by a GI Electrode Earthing. It thereby prevents electric shock among people in case of a lightning strike. It is a great product for earthing. Actually, it is an important part of a chemical earthing system. GI Earthing Electrode Dealers in Pune have a protective coating of zinc on iron by galvanization. This coating renders it anti-corrosive. The coating helps to prevent corrosion of iron and therefore prolongs the life of the electrode. The thickness of the coating can be varied depending on the requirements, such as 100 microns. It therefore guarantees a lifespan and maximum performance of six to seven years. The conductive chemical used fills in the gap that surrounds the electrode, making the earthing system effective.
Types of GI Earthing Electrode:
As a GI Earthing Electrode Manufacturers in Pune we provide these types are:
- GI Pipe Earthing Electrode: GI Earthing Electrode Dealers in Pune. It is a group of common earthing electrodes, which are of vertical galvanized iron pipe. The galvanized coating increases its resistance to corrosion, and the pipe-in-pipe structure or single pipe design increases the conductivity and durability.
- GI Strip Earthing Electrode: This is a technique where a flat strip of galvanized iron is placed in the ground horizontally. GI Strip Earthing Electrodes are ideal in electrical earthing systems that require good dissipation of fault current and low cost.
- GI Plate Earthing Electrode: This is a GI plate that is rectangular-shaped and mounted in the ground vertically. We are made of the Hot-Dip Galvanized Iron (GI) plates and are buried in the ground vertically by laying the plates with charcoal and salt or backfill compounds to promote conductivity.
- GI Rod Earthing Electrode: GI Earthing Rods are produced using high-quality Mild Steel rods that are coated with Hot-Dip Galvanization, which improves corrosion resistance and prolongs the service life. These electrodes are produced using high-quality mild steel rods that are hot-dip galvanized and present better corrosion resistance and durability.
- GI Pipe-in-Pipe Earthing Electrode: This earthing resembles pipe earthing, except that a smaller diameter GI pipe is placed into a larger diameter GI Pipe Earthing Electrode to increase the protection and current flow. Fault currents are carried in an inner pipe, and the outer pipe is provided for mechanical protection and aims to dissipate the current further with a carefully placed number of holes.
- GI Strip-in-Pipe Earthing Electrode: This is an electrode consisting of a strip of GI that is electrically conductive and installed into a GI pipe that provides it with a larger surface area of conductivity. The design of this design is that it incorporates the high surface area of a strip as well as the mechanical and environmental protection of a pipe to make it suitable for industrial, commercial, and critical infrastructure applications.
Technical Specifications of GI Earthing Electrode Manufacturers in Pune:
As a GI Earthing Electrode dealers in Pune, we have added below a table of technical specifications for this.
| Parameter | Specification |
|---|---|
| Material | Galvanized Iron (GI), hot-dip galvanized |
| Electrode Diameter | 40 mm, 50 mm, 60 mm, 80 mm, 100 mm |
| Electrode Length | 1 m / 2 m / 3 m / 6 m (as per requirement) |
| Terminal Size | 40 mm × 6 mm, 50 mm × 6 mm |
| Coating Thickness | 60–100 microns (hot-dip galvanization) |
| Corrosion Resistance | High, due to hot-dip galvanization |
| Soil Compatibility | Suitable for pH 5.0 – 8.0; with optional chemical moisture boosters |
| Service Life | 7–10 years (depending on soil conditions) |
| Installation | Vertical or horizontal, fast installation with GI clamps |
| Standards/Certification | CPRI / IS: 3043 compliant |
| Maintenance | Low / Maintenance-free |
| Packaging | Plastic-wrapped or wo |
Benefits of GI Earthing Electrode:
We are GI Earthing Electrode Suppliers in Pune, and our products provide the following benefits:
- Excellent Resistance to Corrosion. GI Earthing Electrodes are galvanized with a uniform applied layer of zinc (80–100 microns), and this offers great resistance to soil corrosion. This guarantees a longer service life and stable performance under the different soil conditions, such as wet or acidic soils.
- Long Life and Low Maintenance. GI electrodes do not need much or any maintenance once installed. Their durability and anti-corrosive features allow them to be used over extended durations- we can last up to 10–15 years under normal soil conditions, hence saving on replacement and maintenance expenses.
- Good Electrical Conductivity. These electrodes are stable and have low earth resistance, which guarantees that fault currents are dissipated efficiently and that electrical systems are made safer. Conductivity is further enhanced by the use of pipe-in-pipe and conductive compounds.
- Cost-Effective & Economical. GI Chemical Earthing Electrode is a very cost-effective solution compared to other earthing solutions without sacrificing performance. We are durable, readily available and require less maintenance, which reduces the total project cost.
- Simple Installation and Multiple Usages. GI Earthing Electrode Suppliers in Pune systems are lightweight, easy to install and can fit most soil conditions. We are commonly applicable in residential, commercial, and industrial applications, and hence are a flexible option to a wide array of electrical grounding applications.
Applications of GI Earthing Electrode:
We are GI Earthing Electrode Suppliers in Pune, our products are widely used in the following applications:
- Homes and Business Buildings. Applied in the safe earthing of apartments, housing societies, offices, malls, hospitals and commercial complexes to safeguard occupants and equipment against electrical faults and lightning.
- Industrial and Factory Units. Indispensable in earthmoving heavy machinery, motors, control panels and electrical systems at factories, workshops and manufacturing plants to facilitate a smooth and safe operation.
- Education Systems: Power Generation and Distribution. Used in sub stations, transformer yards, switchyards and distribution networks to ensure the presence of low resistance paths in fault currents and to stabilize voltages.
- Information Technology Infrastructure and Telecommunication. Usually installed in data centers, telecom towers, server rooms and control stations where stable earthing is required to both protect the delicate electronic equipment and to ensure continuity of services.
- Green Energy Plants. Used in solar power plants, wind farms and other green energy installations to allow safe grounding of inverters, panels and electrical connections, which increases the overall system safety and reliability.
We are the well-known GI Earthing Electrode Manufacturers in Pune, Suppliers and dealers in Pune. Ground electrodes/GI earthing electrodes are vital elements of efficient earthing systems on electrical installations. These electrodes increase the electrical safety, equipment protection, and stability of the system by offering a low-resistance fault current path. Their high conductivity, durability and resistance to corrosion are the main reasons why we have been of great choice in many applications such as power generation, telecommunication and industrial applications.
Get in touch with us for further details.
