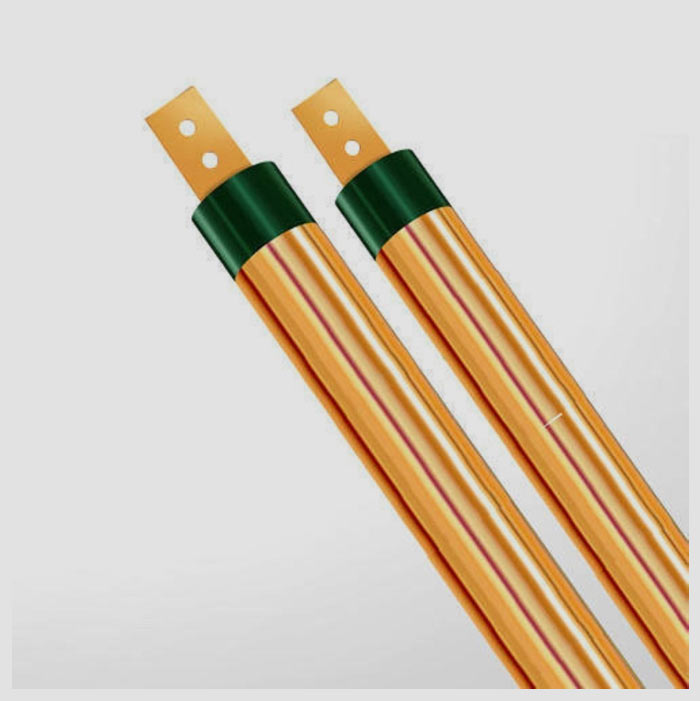

Copper Bonded Earthing Electrode Manufactures in Pune, Suppliers and Dealers in Pune
Planet Power Solutions is a prominent Copper Bonded Earthing Electrode Manufacturers in Pune, Suppliers and dealers in Pune. Our Copper Bonded Earthing Electrode is an effective grounding option. We provide a reliable and low-resistance path for electrical fault currents to safely dissipate into the ground. We protect equipment, personnel, and infrastructure from electrical hazards. Unlike traditional electrodes, copper bonded electrodes have a steel core with a copper coating. We offer great corrosion resistance, excellent conductivity, and long-lasting durability, even in harsh soil and environmental conditions. Our copper bonded electrodes are made to meet international quality standards.
What is a Copper Bonded Earthing Electrode?
Copper Bonded Earthing Electrode Manufacturers in Pune It is viewed as a pathological connection of an electrical system to the land. It provides that in case of fault, all the current entering the earthing is the minimum current limiting current to avoid shock, burning and damage of the apparatus. The systems should be properly ventilated to ensure that safety norms in regards to operational safety of electrical systems are observed. Size and Type considerations, therefore, make it inevitable that we mention the other types of earthing electrodes in use in electrical construction work.
Types of Copper Bonded Earthing Electrode:
As a Copper Bonded Earthing Electrode Manufacturers in Pune, we provide these types are:
- A. Copper Bonded Rods: Copper Earthing Electrodes are made of a high-strength steel Copper Coated Earthing Rod. We are forced into the earth, which offers a strong and efficient way of dissipating fault currents. We are high-strength low-carbon steel inner core, which has a uniform electrolytic copper bonding and a combination of the mechanical strength of the steel and the better conductivity and corrosion resistance of copper.
- B. Copper Bonded Pipes: This Copper Electrode resembles the rod types except that we have a steel pipe in the centre, followed by copper-plating. There is a small relation with Copper Bonded Pipes. Pipes have low-level Quality compared to rods. The electrodes are particularly applicable where deep vertical grounding is required or in highly resistive soils.
Technical Specifications of Copper Bonded Earthing Electrode:
As a Copper Bonded Earthing Electrode dealers in Pune, we have added below a table of technical specifications for this.
| Parameter | Specification |
|---|---|
| Material | Mild Steel core with 99.9% electrolytic copper bonded coating |
| Electrode Diameter | 16 mm, 18 mm, 20 mm, 25 mm, 32 mm, 40 mm |
| Electrode Length | 1.5 m, 2.0 m, 3.0 m, 6.0 m |
| Copper Coating Thickness | 250–300 microns |
| Surface Finish | Smooth and uniform copper coating |
| Corrosion Resistance | High, suitable for acidic, alkaline, and saline soils |
| Soil Compatibility | pH range 3–11 |
| Earth Resistance | <1 Ω (depending on soil and installation) |
| Tensile Strength (MS Core) | 380–480 Mpa |
| Elongation (MS Core) | 12–18% |
| Service Life | ≥30 years in normal soil conditions |
| Terminal Connection | Bolted or clamp type; compatible with GI or Cu conductors |
| Installation Method | Vertical or horizontal, with or without chemical backfill |
| Standards / Certification | IS 3043,2018, IEC 62561, CPRI approved |
| Maintenance | Maintain |
Benefits of Copper Bonded Earthing Electrode:
We are Copper Bonded Earthing Electrode Suppliers in Pune, and our products provide the following benefits:
- Excellent Corrosion Resistance- On the steel, it has an electrolytic copper bonding, which is very helpful to avoid Corrosion. Corrosion is harmful to the long life, which is why it’s very important to avoid corrosion and maintain its long life it’s maintain even in different moisture conditions.
- Superior Electrical Conductivity- Pure Copper Bonded Electrode is an excellent conductor of electricity because of an equal molecular bonding of pure electrolytic copper to a high-strength steel core. This adds to efficient and fast removal of fault currents, limiting voltage variations and improving the overall safety of the system.
- High Mechanical Strength- Copper Bonded Earthing Electrodes are designed using a high tensile steel core, which is extraordinarily strong and rigid in the mechanical sense. This strong design enables the electrode to be driven deep into the different soil conditions without bending or breaking. This steel core and long-life copper bonding guarantee a long performance even in the harsh conditions of installation.
- Maintenance-Free Operation- Copper Bonded Earthing Electrode dealers in Pune are created to provide a stable performance over time, without the necessity of regular maintenance. After installation with appropriate backfilling compounds, we offer low earth resistance at all times.
- Long Service Life & Cost-Effective- Copper Bonded Earthing Electrodes Suppliers in Pune are designed to last 15 to 25 years due to their high corrosion resistance and resistance to wear materials. Use of good steel core, coupled with quality copper bonding, gives the product long life and stability under difficult soil conditions.
Applications of Copper Bonded Earthing Electrode Suppliers in Pune:
We are Copper Bonded Earthing Electrode Suppliers in Pune, our products are widely used in the following applications:
- Commercial & Residential Buildings- Copper Bonded Earthing Electrode has gained immense popularity in residential, apartment, office, mall and commercial complexes to provide safe and reliable earthing of electrical installations. We assist in eliminating fault currents, safeguarding against electrical shocks, equipment damage, and fire hazards.
- Industrial & Manufacturing Units- Copper Bonded Earthing Electrodes Suppliers in Pune are used to ground heavy machinery, control panels and complex electrical systems in automotive, pharmaceuticals, engineering and textile industries.
- Power Generation & Distribution- Copper Coated Earthing Electrode is necessary in power plants, substation and electrical distribution networks to assure safe and effective grounding. We offer low earth resistance, and fault currents can be dissipated quickly to protect transformers, switchgear, and other important equipment.
- Telecommunication & IT Infrastructure- Telecom towers, data centers, server rooms and IT hubs are also equipped with Copper Bonded Earthing Electrodes to protect exposed electronic systems against surges, lightning and electrical faults.
- Infrastructure & Utility Projects- Copper Bonded Earthing Electrode Manufacturers in Pune are widely applied in railways, airports, metros, hospitals, educational facilities, and other public utility projects to provide safe and effective grounding.
We are a leading Copper Bonded Earthing Electrode Manufacturers in Pune, Suppliers and dealers in Pune. Copper Bonded Earthing Electrodes are a very reliable, long-lasting and cost-effective solution to providing effective and stable earthing systems. We provide high conductivity and mechanical strength, and are very resistant to corrosion, thus being used in a wide variety of applications in residential, commercial and industrial applications. Such electrodes are critical to enhancing electrical safety, equipment protection and reducing maintenance costs through guarantees of low earth resistance and consistent performance.
Get in touch with us for further details.
